ImageVue DR30 Digital Imaging System
Learn moreIntroducing superior diagnostic image quality, at an incredible value, with a low dose of radiation.1
compared to
Computed radiography (CR) image settings:
75 kVp and 60 mAs = 246.3 mR
ImageVue DR30 image settings:
76 kVp and 4.5 mAs = 18.6 mR
Top Computed radiography (CR) image settings:
75 kVp and 60 mAs = 246.3 mR
Bottom ImageVue DR30 image settings:
76 kVp and 4.5 mAs = 18.6 mR
Images from the same animal captured on the same table within a 24-hour period, as part of the ImageVue DR30 beta program.
Superior diagnostic image quality, enabled by TRUVIEW ART technology and ClearCapture Dx Image Processing Software, delivers higher image contrast and sharpness than computed radiography (CR), less advanced DR technology, and film.2,3
Reduces radiation dose by 25% or more compared to CR and less-advanced DR technology2—important for staff and patients.1–3
3-step workflow makes image capture quick and easy .
70% faster than CR technology, from order to review of image for diagnosis.3
Get sharper, faster images more safely

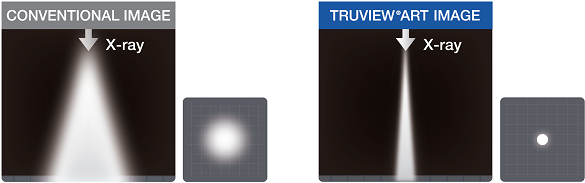

TRUVIEW ART technology focuses the signal area created by cesium crystals when radiation is transformed into light. Focusing the signal with TRUVIEW ART increases image contrast and sharpness without increasing the radiation dose.
3-step workflow makes image capture quick and easy
Order
the image
Position
the patient
Capture
the x-ray
Optimal sharing, consulting, and image storage
Our fully integrated IDEXX Web PACS software platform includes veterinary-specific diagnostic imaging tools and features.‡
Learn about IDEXX Web PACS
Specifications
| Detector type | Cesium iodide tethered flat-panel detector with TRUVIEW ART technology |
| Detector acquisition | Lossless automatic exposure detection (AED) |
| Detecting area | 14″ x 17″ (358 mm x 430 mm); 0.6" (15 mm) thin |
| Image resolution | 2,560 x 3,072 pixels |
| Pixel size | 140 µm x 140 µm |
| Bit depth | 16 bits/pixel |
| Image acquisition | Less than 5 seconds |
| Detector weight | 7.7 pounds |
| Software | ClearCapture Dx Image Processing Software, IDEXX-PACS Imaging Software, and IDEXX Web PACS Software—developed specifically for the veterinary market in collaboration with board-certified radiologists |
| X-ray system | Works with most existing x-ray systems/generators |
| Surface protection | IP53 rating for water and dust/dander resistance |
| Warranty | 1-year full-system warranty (with the exception of damage due to misuse, dropping, or impact) from date of installation. Backed by IDEXX 24/7/365 customer support; IDEXXCare Plus plans available. |
Find out if the ImageVue DR30 system is right for your practice
Please complete the form below and an IDEXX sales representative will contact you, or call 1-855-627-6573.
Make your practice safer with reduced radiation exposure.
Support
Remote and onsite support
Direct and immediate access to specialists in veterinary diagnostic imaging.
We're here to help you 24 hours a day, 7 days a week.
Customer Service: 1-877-433-9948
Diagnostic imaging resources
IDEXXCare Plus
Keeping your practice up to date and running smoothly is the IDEXXCare Plus promise. We’re at your service 24 hours a day, 7 days a week to help you deliver the best veterinary care and customer experiences possible.
TRUVIEW is a trademark of DRTECH Corporation.
‡IDEXX Web PACS subscriptions available for an additional fee.
References
- Data on file at IDEXX Laboratories, Inc. Westbrook, Maine USA. Diagnostic Imaging DR and CR Dose Compare.
- Data on file at IDEXX Laboratories, Inc. Westbrook, Maine USA. Dose & Image Quality Comparison Study: Comparison of Indirect FPD versus Computed Radiography: Dose Reduction in Digital Radiography.
- Data on file at IDEXX Laboratories, Inc. Westbrook, Maine USA. Based upon comparison of IDEXX systems to comparable digital imaging systems currently available in the veterinary market.
- Wright M, Hornof W. Purchasing Digital Radiography without Getting Your Head Handed to You. San Diego, CA: Animal Insides Press; 2010:73.
