ImageVue DR50 Digital Imaging System

The ImageVue DR50 Digital Imaging System enables the lowest-dose image capture without sacrificing optimal, high-quality diagnostic images 1
  • Detects the signal when it's closest to the patient's anatomy.1
  • Reduces radiation exposure to patients and veterinary professionals.1
  • Displays sharp, high-resolution images in under 3 seconds.

Learn how to make your practice safer with radiation safety resources.

Contact us

Sharp, higher-resolution images

Sharp, higher-resolution images improve the visualization of dense anatomy and provide the detail you need to make confident medical decisions for your patients.

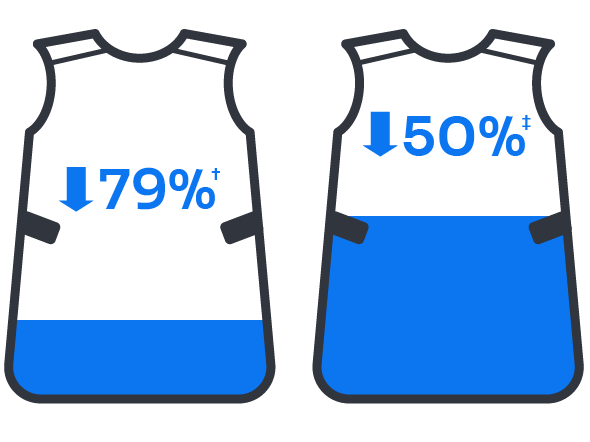

Less radiation exposure

New technology minimizes harmful radiation exposure for you, your staff, and your patients. Lower radiation is especially important for veterinary technicians.2

Speed and flexibility

Stay on schedule with image capture in under 3 seconds. And with IDEXX Web PACS Software—the imaging storage solution—improve care, lower risks, and connect your veterinary practice.

"The ImageVue DR50 system allows me to take the best care of my patients and my staff. Not only does it give me the clear images required to diagnose and treat my patients, but it minimizes my staff’s exposure to potentially harmful radiation. We saw a 50% reduction in the amount of radiation required to get the image quality we needed."

Dr. Stacey Laursen
Laursen Veterinary Service
Fairgrove, Michigan

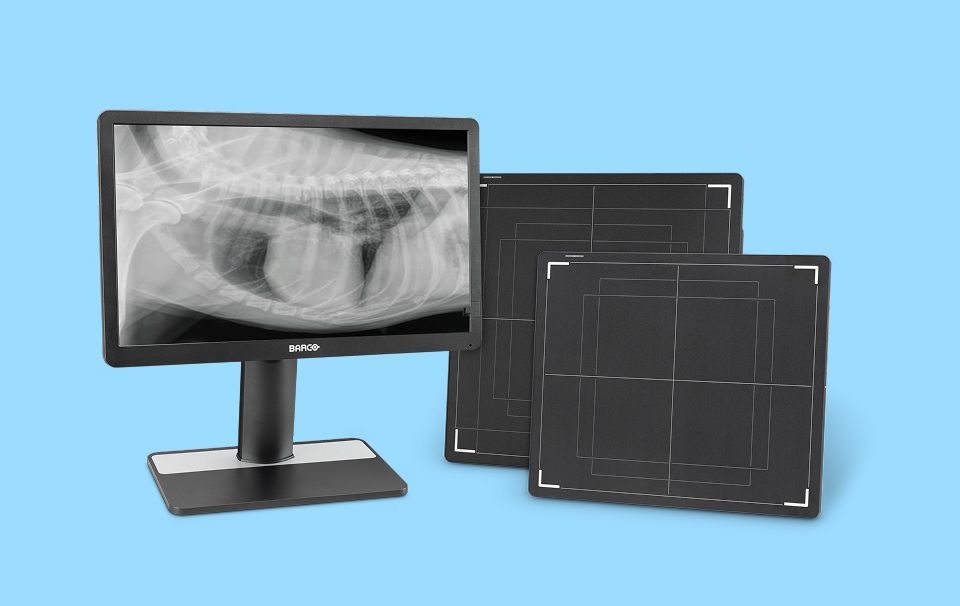

IDEXX ImageVue DR50 and monitor displaying a digital image


Technological advancement transforms the relationship between radiation dosage and image clarity

Patented cesium iodide (CsI) wireless flat-panel detectors

Provides sharper images and more efficient x-ray conversion for reduced x-ray exposure to your patients and staff.3

Patented Irradiation Side Sampling (ISS) technology

Allows the sensor to be placed in front of the scintillation layer, instead of in its traditional position behind, for higher resolution and reduced dose.3

Dynamic Visualization optimized image processing

Designed to maintain the highest contrast possible for greater detail, giving you the optimal image for each examination.


Detector type Cesium iodide wireless flat-panel detector with ISS technology
Detecting area 14″ x 17″ (35.6 cm x 42.7 cm)
Image resolution 2304 x 2880 pixels
Pixel size 150 µm x 150 µm
Bit depth 16 bits/pixel
Image acquisition Under 3 seconds
Detector weight 7.9 pounds
Software IDEXX-PACS and IDEXX Web PACS imaging software—developed specifically for the veterinary market in conjunction with board-certified radiologists
X-ray system Works with most existing x-ray systems/generators
Images/Hours per charge Up to 500 images or 3.5 hours
Warranty 1-year full-system warranty with the exception of damage due to misuse, dropping or impact, from date of installation. Backed by 24/7/365 customer support; IDEXXCare Plus plans available.


IDEXX Web PACS: Stress-free one-stop digital imaging, from capture to storage

Improve patient care

VetConnect PLUS lets you view all patient results in one convenient place and makes it easy to collaborate and share in real time.

Enjoy real-life flexibility

Stay on schedule and up to date with every case and be there for your family, too—view your images on any device at home, on the road, or in the office.

Save and grow

Eliminate costly IT, capture every charge, and breathe: you’re backed by IDEXX and cloud technology.


We’re here to help you 24 hours a day, 7 days a week

Customer Service: 1-800-248-2483

Email customer support

Diagnostic imaging resources

Discover diagnostic imaging (U.S.) and IDEXX Web PACS (U.S.) educational resources and training to help you learn how to maximize your investment.

IDEXXCare Plus

Keeping your practice up to date and running smoothly is the IDEXXCare Plus promise. We’re at your service 24 hours a day, 7 days a week to help you deliver the best veterinary care and customer experiences possible.


  1. Bailey M, Houde T, Kutasi D, Worrall J. Achieve Radiation Dose Optimization with the ImageVue DR50 Digital Imaging System. Westbrook, ME: IDEXX Laboratories; 2019.
  2. Bailey M, Houde T, Kutasi D, Worrall J. Radiation Safety Culture Management in Veterinary Medicine. Westbrook, ME: IDEXX Laboratories; 2019.
  3. Innovations in Digital Radiography and Dose Reduction. Stamford, CT: Fujifilm Medical Systems U.S.A., Inc.; 2015.
